Ecotherm technology transfers hot water heat using a spiral flat heating coil placed at the bottom of the heating tank

High Capacity Water Heater" used in ECOTHERM's industrial and commercial applications is a high-quality product line. All components are made of high-quality stainless steel at the ECOTHERM headquarters manufacturing facility in Austria. The patented spiral flat heating coil is used in the High Capacity Water Heater model EHSF. Thanks to its flat design (12cm high), the heat exchanger is always placed in the coldest area of the tank (at the bottom). This ensures highly efficient heat transfer and also produces the most hygienic hot water source. Based on the spiral design with an area of up to 18m2, the heat exchange surface can be arranged in a single layer.

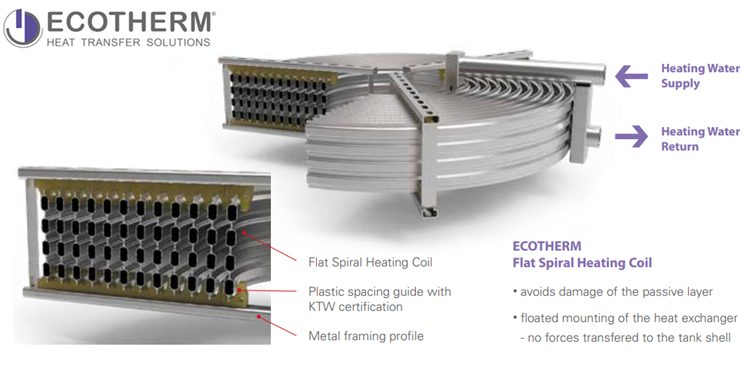

General introduction to ECOTHERM's spiral flat heating coil

Features:

• Flat design (120mm high) ensures high efficiency
• “Free-floating” heat exchanger attached with non-metallic spacers
• 316Ti stainless steel (other materials available upon request)
• Fully automatic production

The difference between ECOTHERM's patented spiral flat coil and conventional heating coils

Conventional heating coils

Conventional heat exchangers are always in mixing temperature zones from 10°C to 60°C and thus have a reduced heat transfer rate. During the heating phase heating coils produce circulations in the storage tank and need more primary energy. The available standby volume is usually only about 70% of the capacity of the storage tank.

• Up to 30% reduced effective volume & risk of legionella
• Reduced power consumption and poor heat layering
• Limited heat exchanger surfaces and reduced installation options
• Increased primary energy consumption
• 50% Standby volume
• 50% Mixing water area and “dead” volume

ECOTHERM Spiral Flat Heating Coils

The patented spiral heating coil is mounted horizontally at the bottom of the storage tank. It is 100% in the cold water zone, respectively only in one temperature zone. The installation directly above the tank bottom and the low height (13cm) allow an almost complete heating of the storage tank.

• The special construction of the register ensures
• High standby volume (97% of the tank capacity)
• Hygienic water
• High efficiency due to efficient heat transfer
• Optimized heat layering
• Primary energy savings
• 97% Standby volume
• 3% Mixing water area and “dead” volume

Comparing the efficiency of Ecotherm's flat coil heating tanks and conventional spiral coil tanks

Contact Us

ECOTHERM's industrial and commercial high-capacity water heaters are the result of over 20 years of research and development. All components of these high-quality products are made from premium stainless steel. Each system is custom-designed for the customer's specific needs, tailored to the project. ECOTHERM's engineers use proprietary design software to develop and optimize each system for maximum efficiency, minimal floor space, and significant savings on energy and maintenance costs.

Contact PGTECH, the official representative of Ecotherm in Vietnam, for a customized solution.
