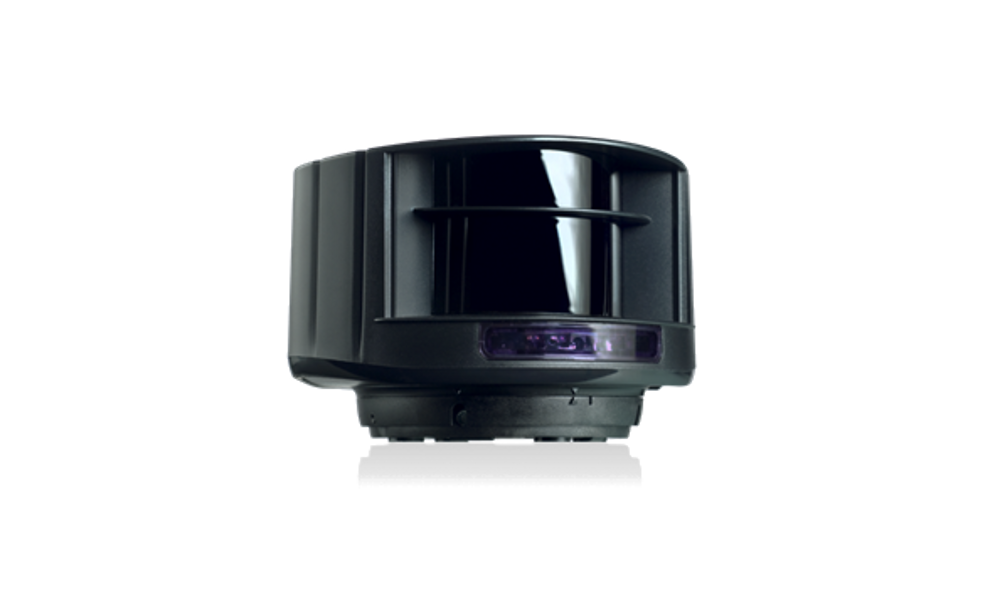

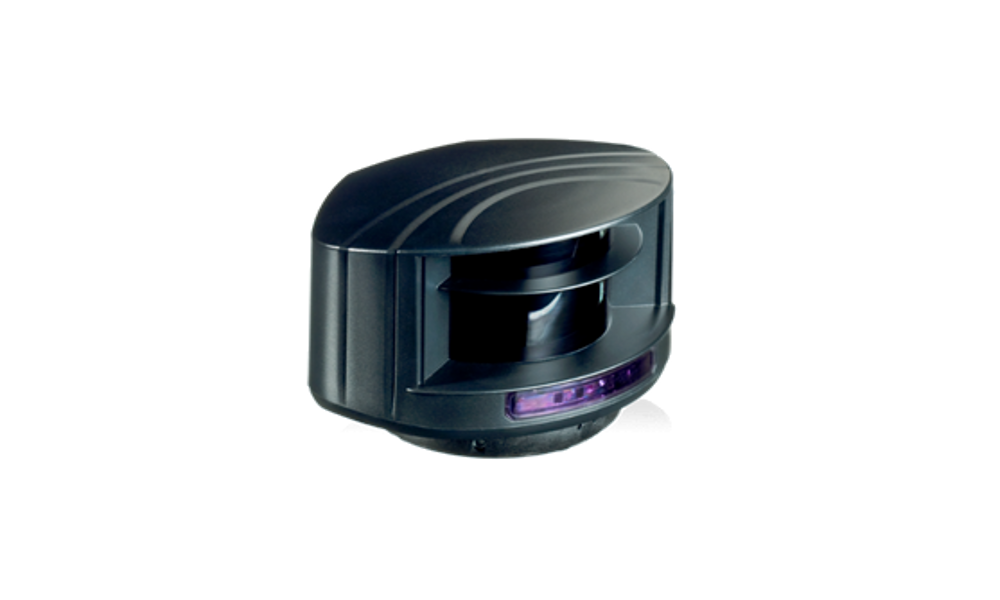

The BEA LZR®-P220 utilizes advanced Laser Time-of-Flight (ToF) technology to provide highly accurate pedestrian protection around automatic revolving doors.
Its high-resolution laser curtain continuously monitors the hazardous closing area, helping prevent accidental contact between users and moving door panels while ensuring safe and efficient door operation.
The sensor employs a single high-resolution laser curtain with digitally adjustable tilt angles to optimize the protection zone.
Key performance features include:
- 274 measurement points every 66 ms
- Digitally adjustable tilt angles of 0°, 2°, 4°, and 6°
- High detection accuracy
- Reliable pedestrian protection
The detection field can be configured to match different revolving door installations.
Features include:
- Adjustable detection width from 10 cm to 100 cm
- Maximum mounting height of 5 m
- Customizable detection field using reference points (6 points every 10 cm at a mounting height of 2.5 m)
This flexibility allows precise adaptation to various door dimensions and installation requirements.
Thanks to Time-of-Flight laser technology, the sensor is unaffected by reflections from different floor materials, ensuring consistent detection performance regardless of floor finish.
The LZR®-P220 is designed for demanding indoor and outdoor applications.
Its integrated technologies include:
- Rain filter
- Snow filter
- Built-in internal heating system
These features ensure stable operation under changing environmental and weather conditions.
As the official distributor of BEA automatic door and industrial door safety sensors in Vietnam, PGTECH Vietnam provides genuine products, technical consultation, engineering support, and after-sales service for commercial and industrial projects.
